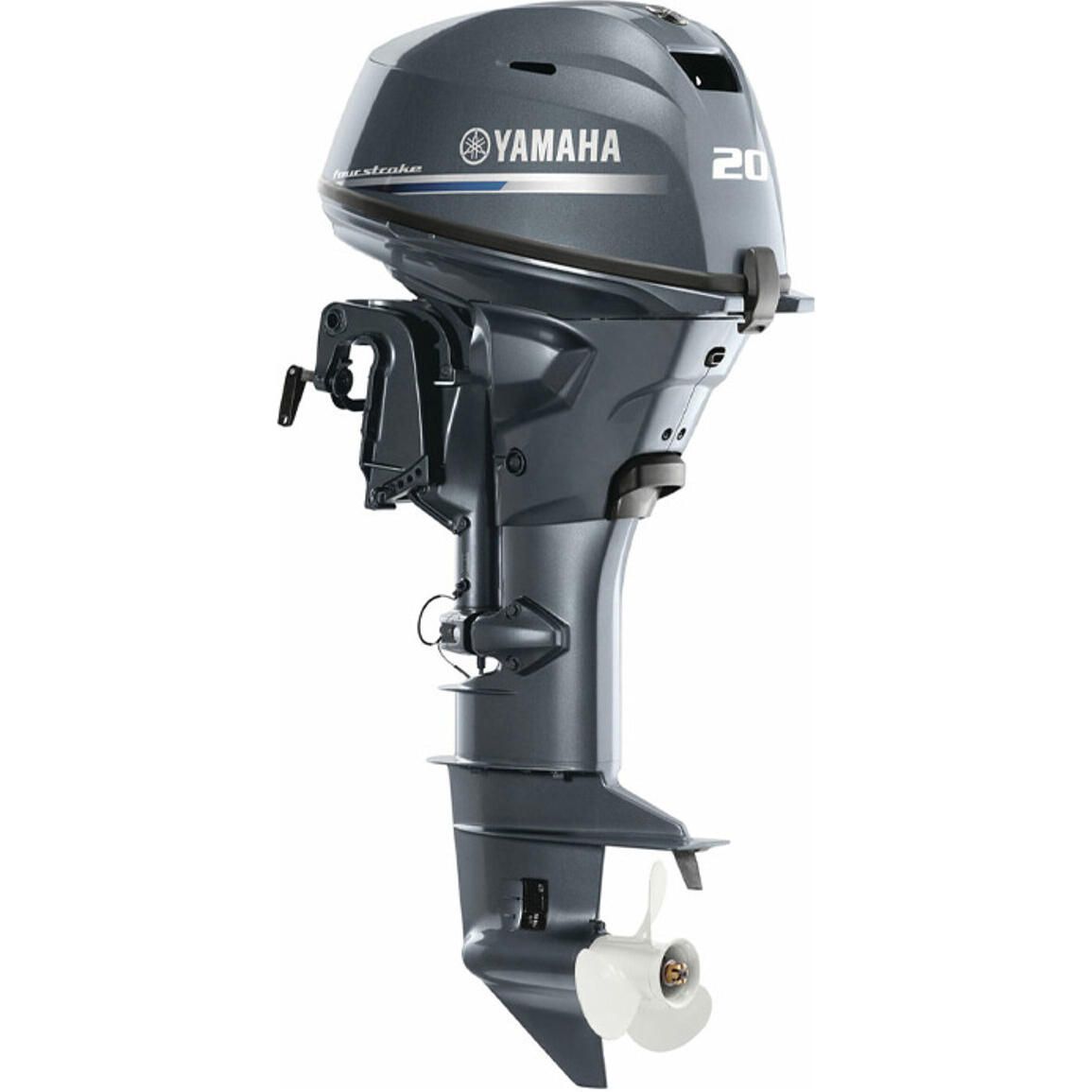

15 Shaft New (2026) Yamaha 20 HP Remote (F20) four-stroke Outboard Motor (F20SWPB) Start Electric Power Tilt
Original price was: $3,999.00.$2,633.00Current price is: $2,633.00.
Remote Control & Steering Features
- Remote Operation: Designed to connect to a console-mounted remote control box (703 style) for throttle and gear shifting, as well as mechanical cable steering.
- Power Tilt: Features a high-quality hydraulic pump that allows you to tilt the engine up or down via a switch on the remote control handle or the engine cowl. This is essential for protecting the propeller in shallow water or when trailering.
- 12-Amp Alternator: A high-output charging system that ensures your starting battery remains charged while providing ample power for console electronics like GPS, fish finders, and gauges.
Core Engine Specifications
- Engine Type: SOHC In-line 2-Cylinder
- Displacement: 432 cc (26.4 cu. in.)
- Bore x Stroke: 65.0 x 65.1 mm (2.554 x 2.558 in)
- Prop Shaft Horsepower: 20 HP at 5500 RPM
- Full Throttle RPM Range: 5000 – 6000 RPM
- Compression Ratio: 9.3:1
- Fuel Induction System: Electronic Fuel Injection (EFI)
- Ignition System: CDI Microcomputer
- Lubrication System: Wet Sump
- Oil Capacity: 1.1L (with filter) / 1.0L (without filter)
Dimensions & Mechanical Data
- Shaft Length: 15″ (Short Shaft)
- Dry Weight: Approximately 62 kg (137 lbs)
- Starting System: Electric Start with Manual backup
- Steering: Remote Mechanical Control
- Trim & Tilt: Power Tilt
- Tilt Range: 62° – 63°
- Trim Range: -3° through +16°
- Gear Ratio: 2.00:1
- Alternator Output: 12V, 16 Amp
Key Features
- Battery-less EFI: Ensures smooth operation and easy manual starting if the battery is unavailable.
- Max Maneuverability: Features a 45-degree steering angle in each direction.
- Variable Trolling RPM (VTS): Allows precision trolling speed adjustment (750–1050 RPM) via optional switch panel or Command Link gauges.
- Freshwater Flush Device: Allows for easy cleaning of the cooling system without running the engine.
- Command Link Compatibility: Compatible with Yamaha’s advanced digital network for clear engine data and performance information
- Warranty: 3-year limited warranty
Advanced EFI & Starting
- Battery-Less EFI: The Electronic Fuel Injection system ensures quick, reliable starts and smooth idling. Even as a remote electric-start model, it can be rope-started manually in an emergency without a battery.
- Electric Start: Effortless turn-key or push-button starting.
- PrimeStart™: An automatic system that monitors engine temperature for a perfect start every time, eliminating the need for a manual choke.
Performance & Engineering
- 332cc 2-Cylinder SOHC: Shares the award-winning lightweight architecture of the F25 series, providing an exceptional power-to-weight ratio for small skiffs and RIBs.
- Auto-Decompression: Reduces cylinder pressure during the start cycle to put less strain on the starter motor and battery.
- Labyrinth Exhaust: A specialized internal exhaust path that traps noise and exits through the propeller hub, making it one of the quietest 20 HP motors available.
Durability & Maintenance
- Freshwater Flush Device: A front-mounted port that allows you to rinse the cooling system with a garden hose without running the engine.
- YDC-30 Aluminum Alloy: Yamaha’s proprietary anti-corrosive alloy, finished with a 5-stage paint process for superior protection in saltwater.
- Streamlined Cowling: A modern, compact design that drains water effectively and is easy to remove for routine maintenance.
Standard Accessories
- External Fuel Tank: Typically supplied with a 25L (6.6-gallon) tank and fuel line.
- Propeller: 3-blade aluminum propeller optimized for remote-steered boats
