20 Shaft New (2025) Yamaha 25 HP Tiller (F25) Outboard Motor (F25LWHC) Start Electric Tilt Manual
Original price was: $3,053.00.$2,253.00Current price is: $2,253.00.
-
20 Shaft New (2026) Yamaha 25 HP Tiller (F25) Outboard Motor (F25LMHC) Start Rope Tilt Manual
Original price was: $2,809.00.$2,009.00Current price is: $2,009.00.
-
20 Shaft New (2026) Yamaha 25 HP Tiller (F25) Outboard Motor (F25LWTHC) Start Electric Tilt Power Trim and Tilt
Original price was: $3,366.00.$2,566.00Current price is: $2,566.00.
-
20 Shaft New (2026) Yamaha 25 HP Tiller (F25) Outboard Motor (F25LWHC) Start Electric Tilt Manual
Original price was: $3,192.00.$2,392.00Current price is: $2,392.00.
-
15 Shaft New (2026) Yamaha 25 HP Tiller (F25) Outboard Motor (F25SWTHC) Start Electric--Tilt Power Trim and Tilt
Original price was: $3,027.00.$2,227.00Current price is: $2,227.00.
Sale!

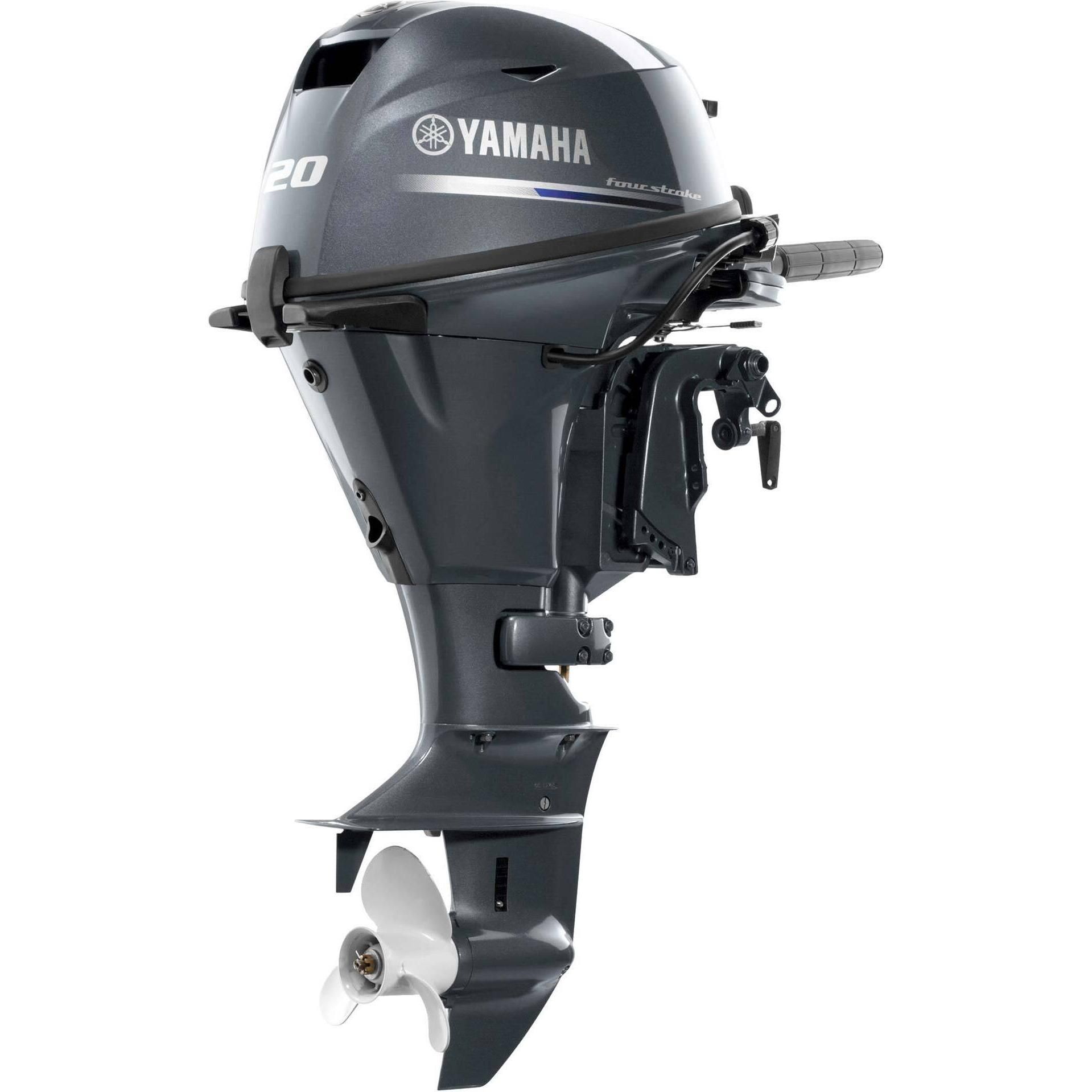

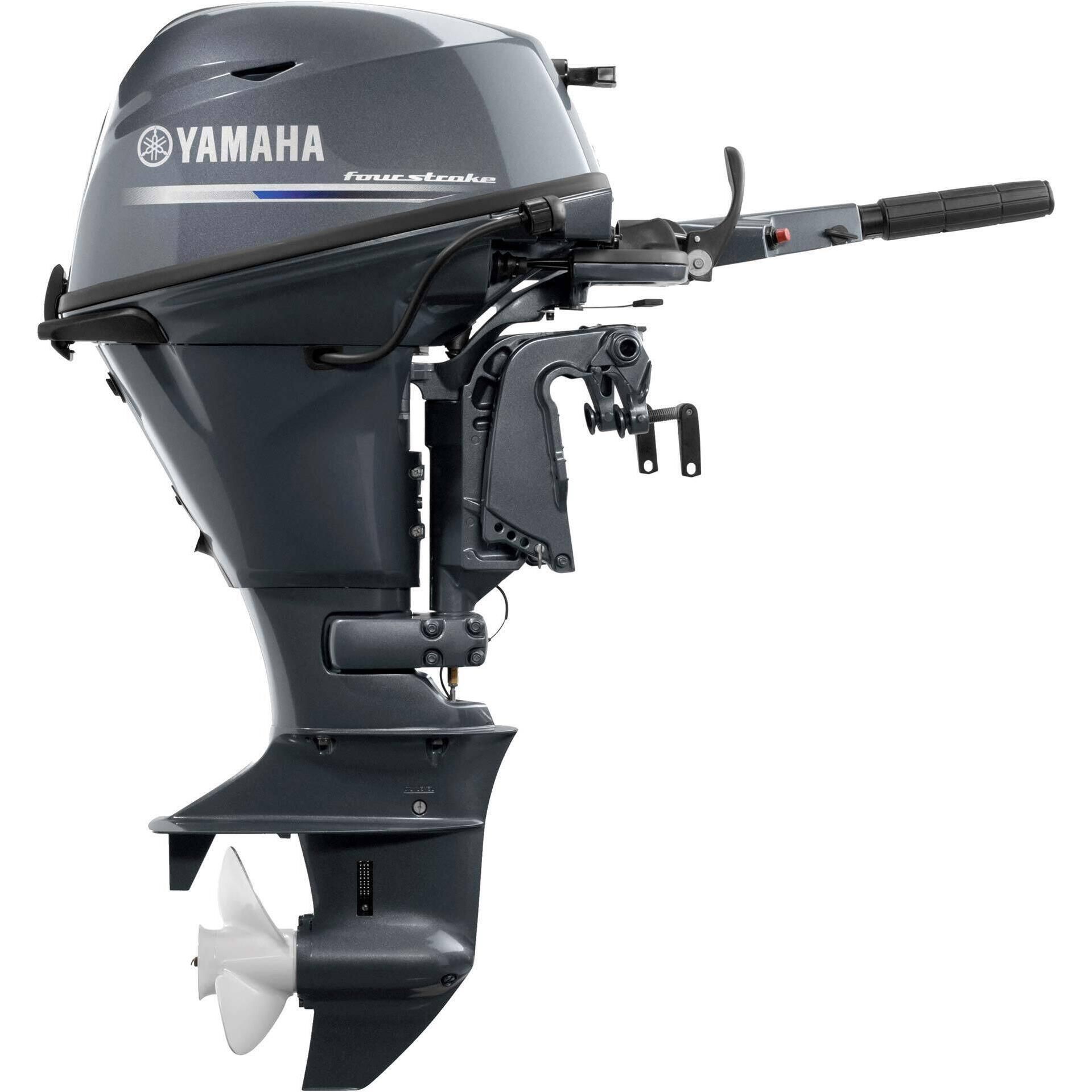

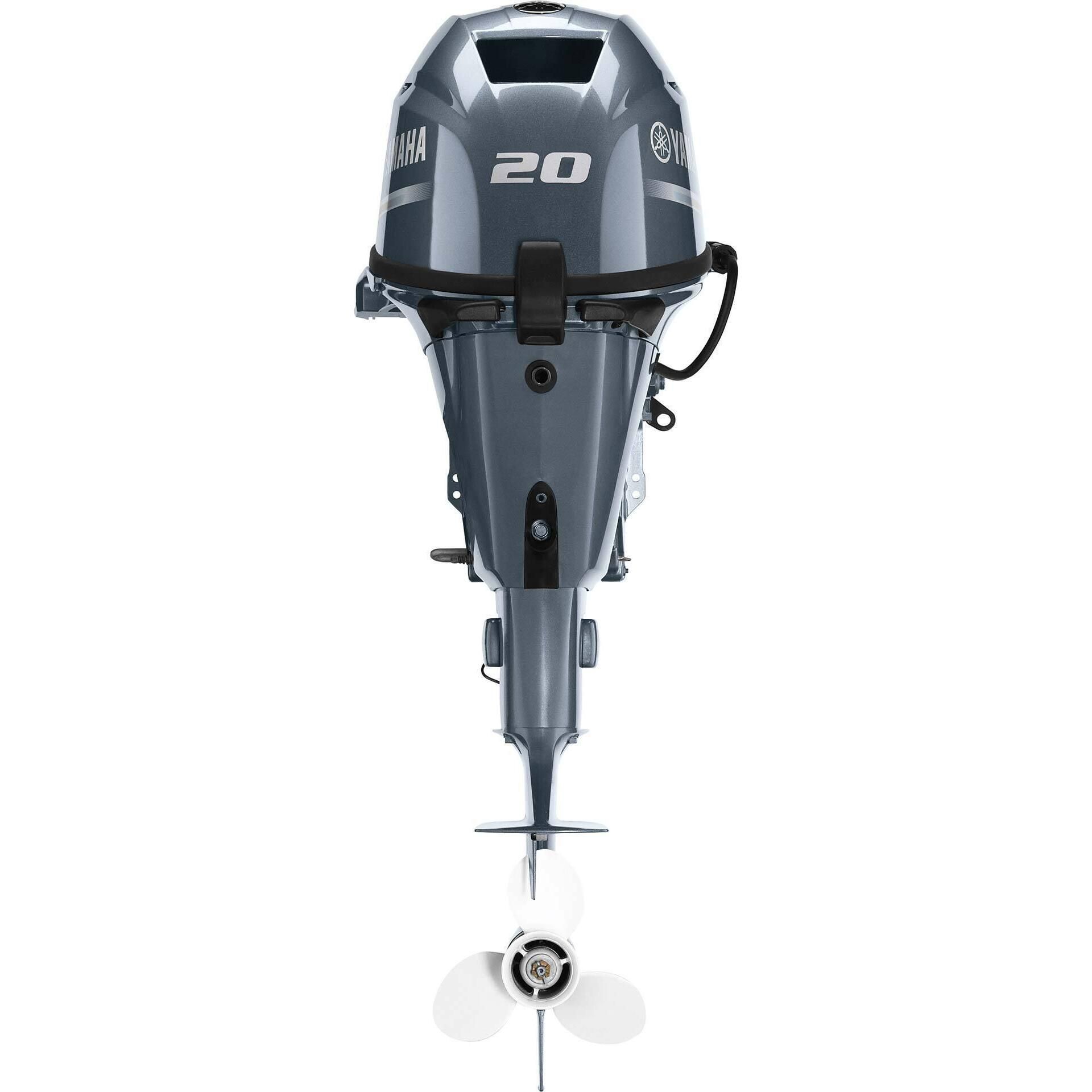

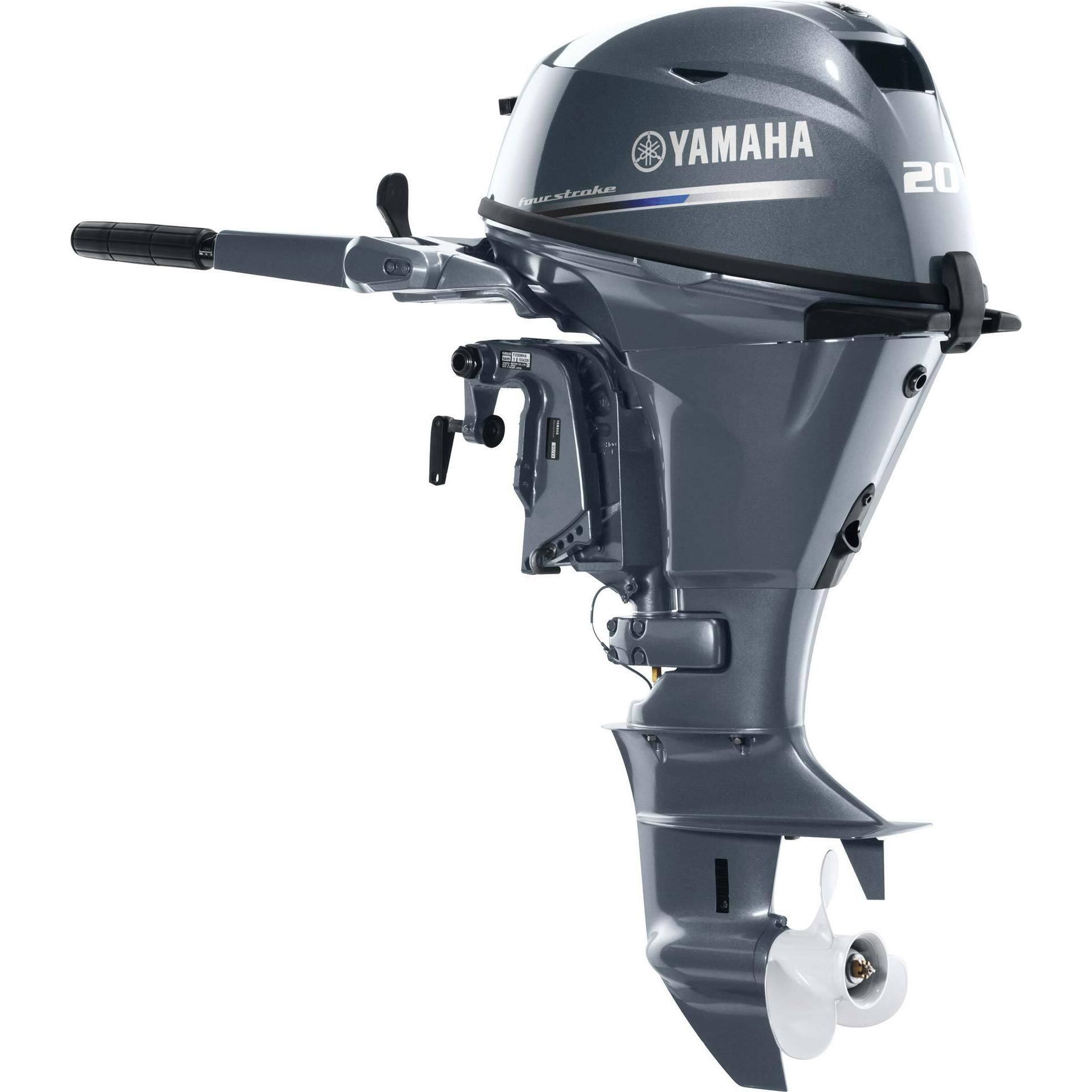

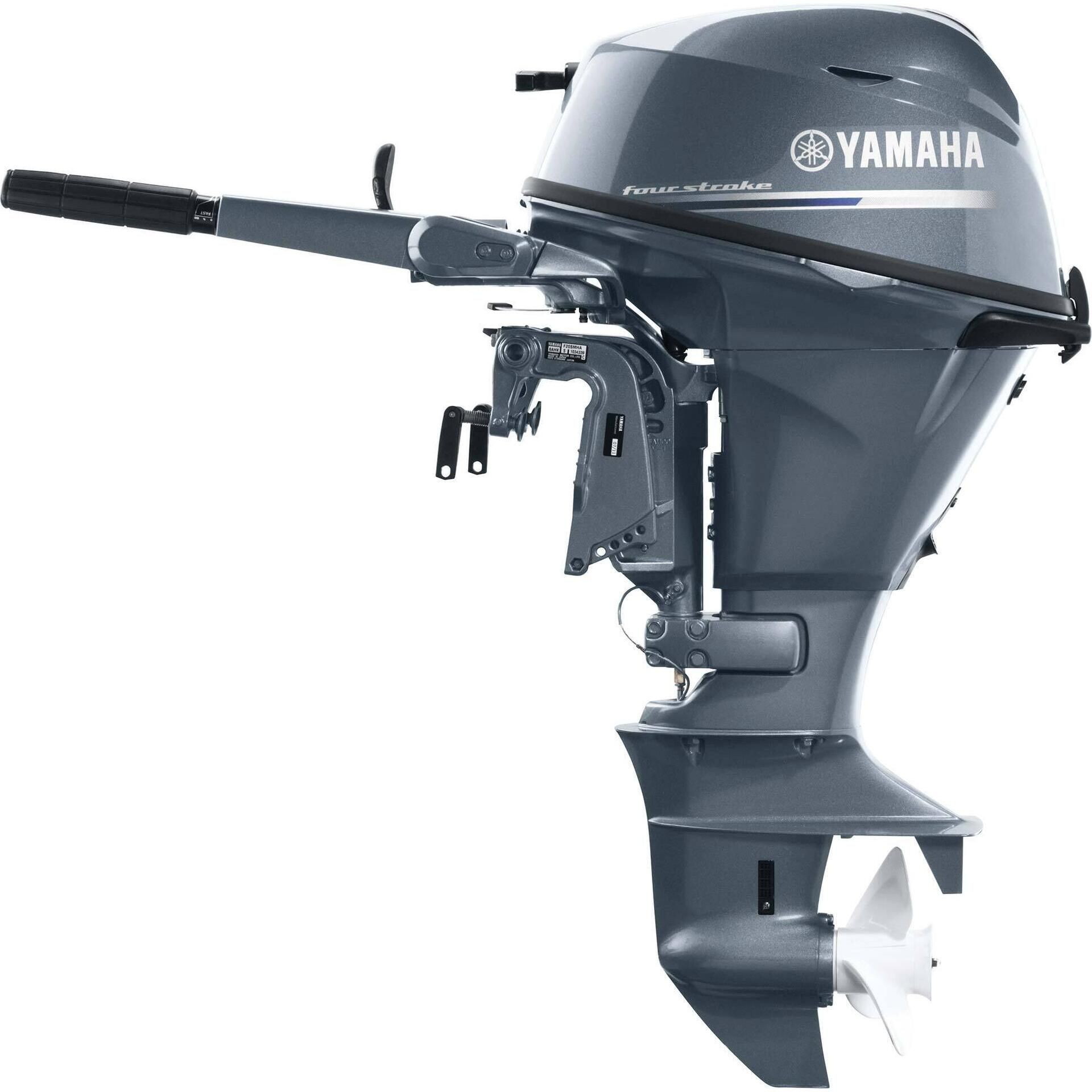

20 Shaft New (2025) Yamaha 20 HP Tiller (F20) four-stroke Outboard Motor (F20LWHB) Start Electric Tilt Manual
Original price was: $3,899.00.$2,099.00Current price is: $2,099.00.
Advanced EFI & Starting Features
- Battery-Less EFI: The Electronic Fuel Injection system provides precise fuel delivery for quick, reliable starts and smooth idling. Because it is battery-less, the engine can be manually pull-started with ease even if your battery is completely dead.
- Electric Start: Offers effortless push-button starting. It includes a high-output 12-Amp Alternator to maintain your starting battery and power accessories like fish finders or navigation lights.
- Auto-Decompression: A mechanical device that reduces cylinder pressure during the start cycle, making both the electric starter and the manual backup rope much easier to pull.
Core Engine Specifications
- Engine Type: SOHC In-line 2-Cylinder
- Displacement: 432 cc (26.4 cu. in.)
- Bore x Stroke: 65.0 x 65.1 mm (2.554 x 2.558 in)
- Prop Shaft Horsepower: 20 HP at 5500 RPM
- Full Throttle RPM Range: 5000 – 6000 RPM
- Compression Ratio: 9.3:1
- Fuel Induction System: Electronic Fuel Injection (EFI)
- Ignition System: CDI Microcomputer
- Lubrication System: Wet Sump
- Oil Capacity: 1.1L (with filter) / 1.0L (without filter)
Dimensions & Mechanical Data
- Shaft Length: 20″ (Long Shaft)
- Dry Weight: Approximately 62 kg (137 lbs)
- Note: This is roughly 7 lbs heavier than the manual-start version due to the addition of the electric starter.
- Starting System: Electric Start with Manual Rope Start backup
- Steering: Multi-Function Tiller Handle
- Trim & Tilt: Manual Tilt (4 positions)
- Tilt Range: Up to 62° – 71° (varies slightly by regional specs)
- Trim Range: -4° through +16°
- Gear Ratio: 2.08:1
- Gear Shift: Forward, Neutral, Reverse (F-N-R)
- Alternator Output: 12V, 16 Amp
Key Performance Features
- Battery-less EFI: Ensures reliable manual starting even without a battery and smooth performance in varying temperatures.
- Variable Trolling RPM (VTS®): Standard on tiller models, allowing precision speed adjustment in 50 RPM increments (750–1050 RPM).
- High-Output Alternator: Produces 16 amps, providing 60% more power than previous generations to support electronics and battery charging.
- Freshwater Flush Device: Easy-access port to rinse salt and debris from the cooling system without running the engine.
- Enhanced Portability: Features integrated carry handles and resting pads for safe, oil-leak-free horizontal storage
-
Control & Maneuverability
- Multi-Function Tiller Handle: Ergonomically designed with a front-mounted shift lever (F-N-R) that is longer and easier to reach, a large twist-grip throttle, and an integrated engine stop switch.
- Variable Trolling RPM Switch (VTS): A standard feature on the tiller handle that allows you to adjust your trolling speed in 50-RPM increments (from 750 to 1050 RPM) at the touch of a button.
- Manual Tilt & Shallow Water Drive: A simple, lever-actuated tilt mechanism with multiple preset positions, including a dedicated setting for navigating through skinny water safely.
Performance & Engineering- 332cc 2-Cylinder SOHC: Shares the award-winning lightweight architecture of the 25 HP series, offering one of the best power-to-weight ratios in the 20 HP class.
- Labyrinth Exhaust: Routes exhaust gases through a complex internal path to dampen noise before exiting underwater through the propeller hub.
- PrimeStart™: An automatic enrichment system that eliminates the need for a manual choke, ensuring a consistent start in any weather.
Durability & Portability- Freshwater Flush Device: A front-mounted, easy-access port that lets you rinse salt and debris out of the cooling system with a garden hose without running the motor.
- YDC-30 Aluminum Alloy: Yamaha’s proprietary anti-corrosive alloy, finished with a 5-stage paint process for maximum protection in saltwater.
- On-Side Storage Pads: Built-in resting points allow the motor to be stored on its side during transport without oil leaking into the intake.
Standard Accessories- External Fuel Tank: Typically supplied with a 25L (6.6-gallon) external tank and fuel line.
- Propeller: Standard 3-blade aluminum propeller optimized for high torque
- Warranty: 3-year limited warranty
