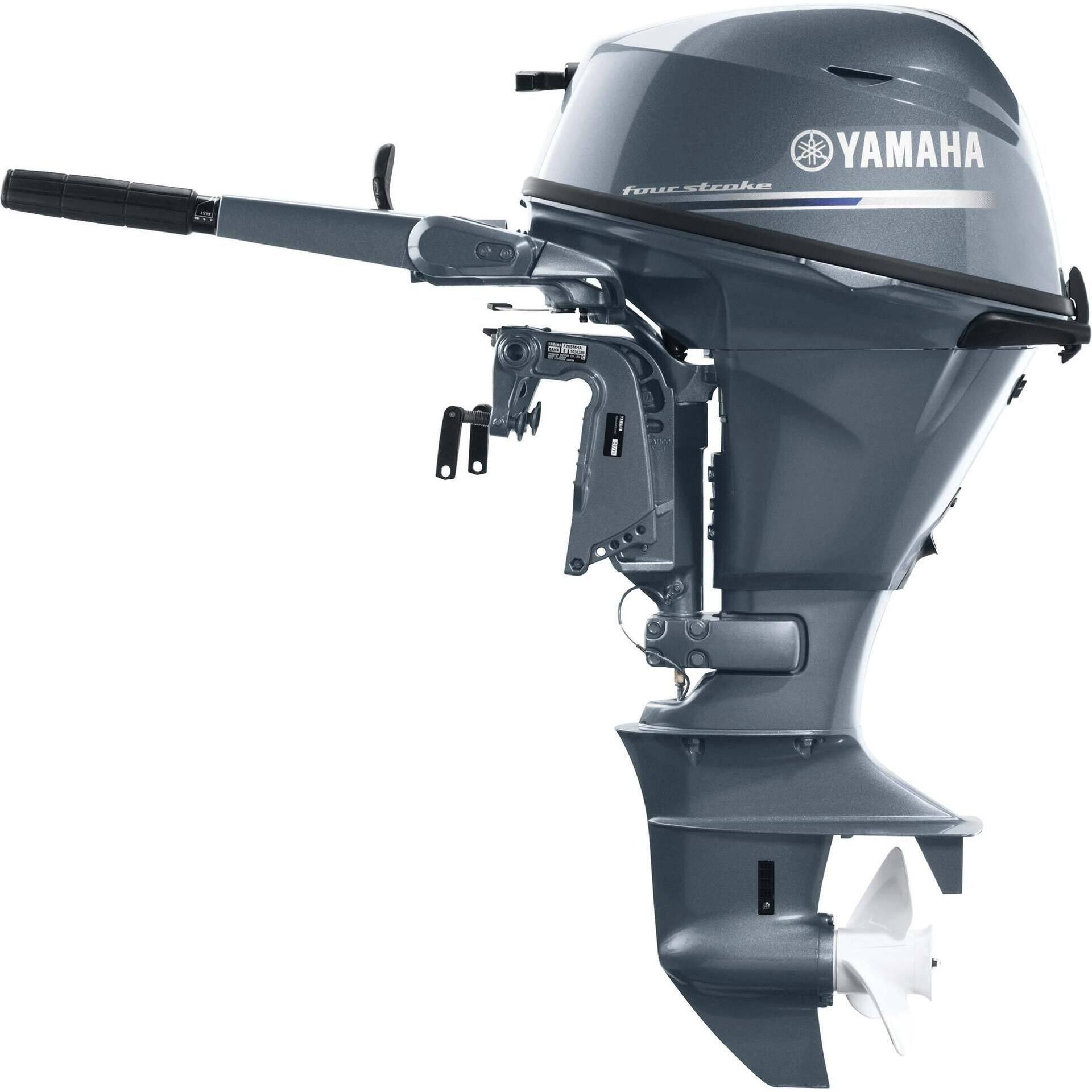

20 Shaft New (2026) Yamaha 20 HP Tiller (F20) four-stroke Outboard Motor (F20LWHB) Start Electric Tilt Manual
Original price was: $3,999.00.$2,194.00Current price is: $2,194.00.
Advanced EFI & Starting Features
- Battery-Less EFI: The Electronic Fuel Injection system ensures easy, reliable starting and smooth idling regardless of weather or altitude. Because it is “battery-less,” you can still rope-start the motor manually with ease even if your battery is flat.
- Electric Start: Offers push-button starting convenience. It includes a high-output 12-Amp Alternator to charge your starting battery and power electronics like GPS or fish finders.
- PrimeStart™: An automatic system that eliminates the need for a manual choke, ensuring a quick start on the first try every time.
-
Core Engine Specifications
- Engine Type: SOHC In-line 2-Cylinder
- Displacement: 432 cc (26.4 cu. in.)
- Bore x Stroke: 65 x 65.1 mm (2.55 x 2.56 in)
- Prop Shaft Horsepower: 20 HP at 5500 RPM
- Full Throttle RPM Range: 5000 – 6000 RPM
- Compression Ratio: 9.3:1
- Fuel Induction System: Electronic Fuel Injection (EFI)
- Ignition System: CDI Microcomputer
- Lubrication System: Wet Sump
- Oil Capacity: 1.1L (with filter) / 1.0L (without filter)
Dimensions & Mechanical Data- Shaft Length: 20″ (Long Shaft)
- Dry Weight: Approximately 61 kg (135 lbs)
- Starting System: Electric Start (with Manual Rope Start backup)
- Steering: Multi-Function Tiller Handle
- Trim & Tilt: Manual Tilt (4 positions)
- Tilt Range: 62° – 71°
- Trim Range: -3° through +16°
- Gear Ratio: 2.08:1
- Gear Shift: Forward, Neutral, Reverse (F-N-R)
- Alternator Output: 12V, 16 Amp
Key Features- Battery-less EFI: Provides easier starting, smoother running, and better fuel economy even without a battery.
- Variable Trolling RPM (VTS®): Allows you to adjust trolling speed in 50 RPM increments (750–1050 RPM) via the tiller handle.
- Freshwater Flush Device: Easy-access connector to flush the cooling system without running the engine.
- High Output Alternator: Delivers 16 amps of power to keep electronics charged.
- Portability: Features built-in resting pads and large carrying handles for easier transport
- Warranty: 3-year limited warranty
-
Control & Maneuverability
- Variable Trolling RPM Switch (VTS): A standard feature on the tiller handle that allows you to adjust trolling speeds in 50-RPM increments (from 750 to 1050 RPM) at the touch of a button—essential for precision fishing.
- Ergonomic Tiller Handle: Features a front-mounted shift lever (F-N-R) that is longer and easier to reach, a large twist-grip throttle, and an integrated engine stop switch.
- Manual Tilt with Shallow Water Drive: A simple, lever-actuated tilt mechanism with multiple preset positions. It includes a dedicated setting for navigating through thin water to protect your propeller.
Performance & Engineering- 332cc 2-Cylinder SOHC: One of the lightest 20 HP engines in its class, offering an incredible power-to-weight ratio for small aluminum boats, inflatables, and sailboats.
- Labyrinth Exhaust: This system traps exhaust noise and directs it underwater through the prop hub, making the F20 remarkably quiet even at higher RPMs.
- Auto-Decompression: Automatically reduces cylinder pressure during the start cycle, significantly reducing the effort needed for both the electric starter and the manual backup rope.
Durability & Portability- Freshwater Flush Device: A front-mounted port allows for easy rinsing of the cooling system with a garden hose without having to run the engine.
- YDC-30 Aluminum Alloy: Yamaha’s proprietary anti-corrosive alloy combined with a 5-stage paint process for maximum saltwater durability.
- On-Side Storage Pads: Built-in resting points allow the motor to be laid on its side during transport or storage without oil leaking into the intake or cylinders.
Standard Equipment Included- External Fuel Tank: Typically supplied with a 25L (6.6-gallon) tank and fuel line.
- Aluminum Propeller: Optimized for the high torque of the 20 HP 4-stroke engine
