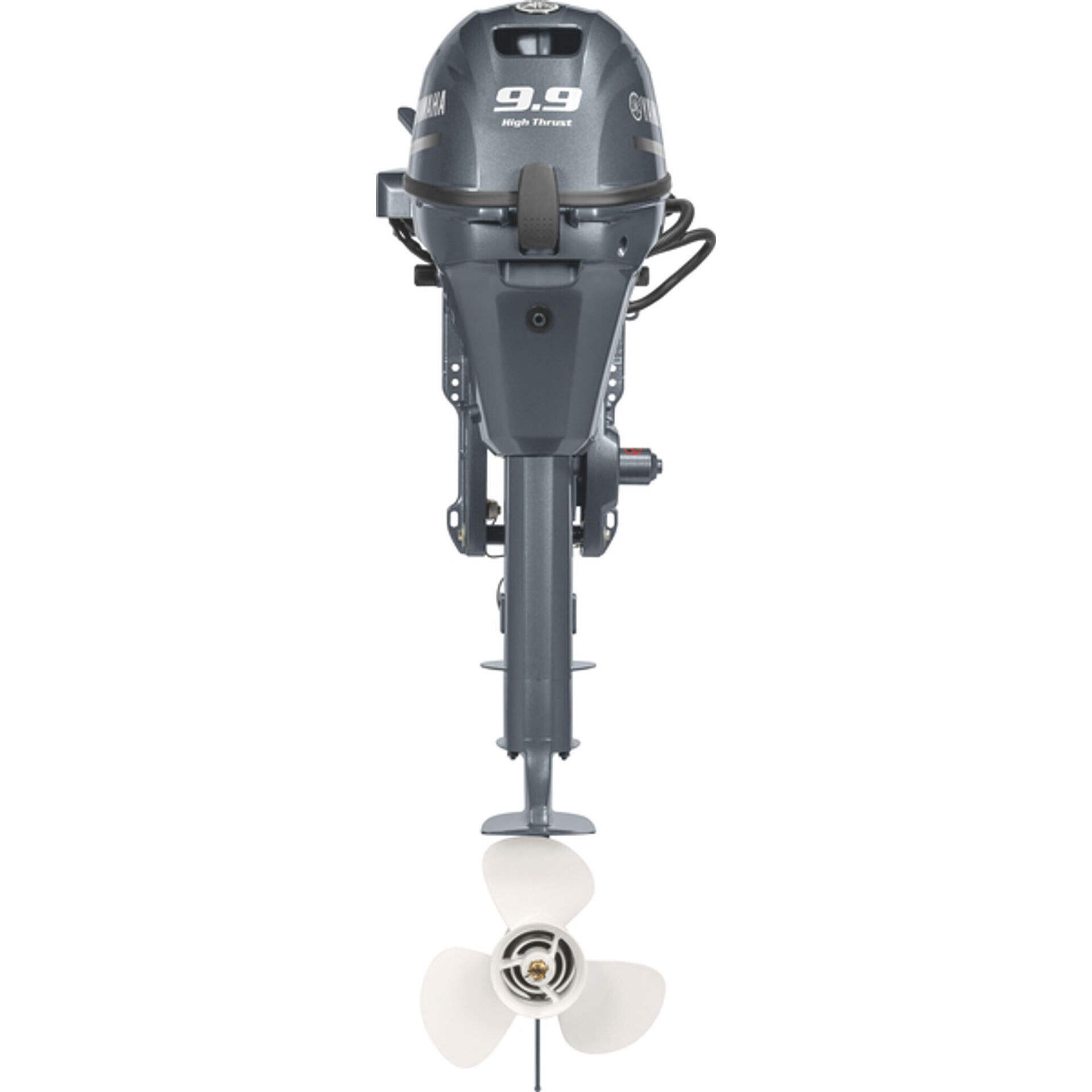

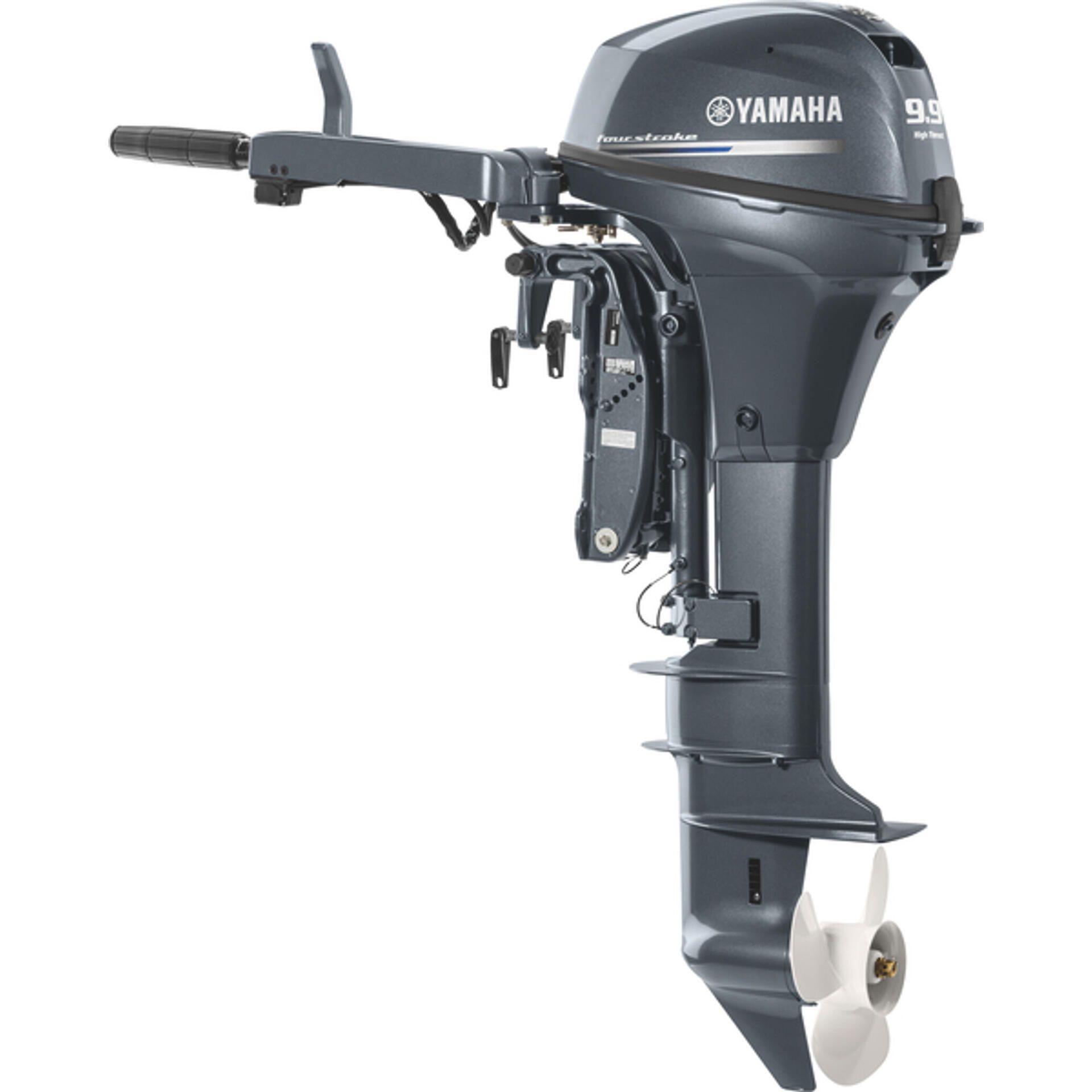

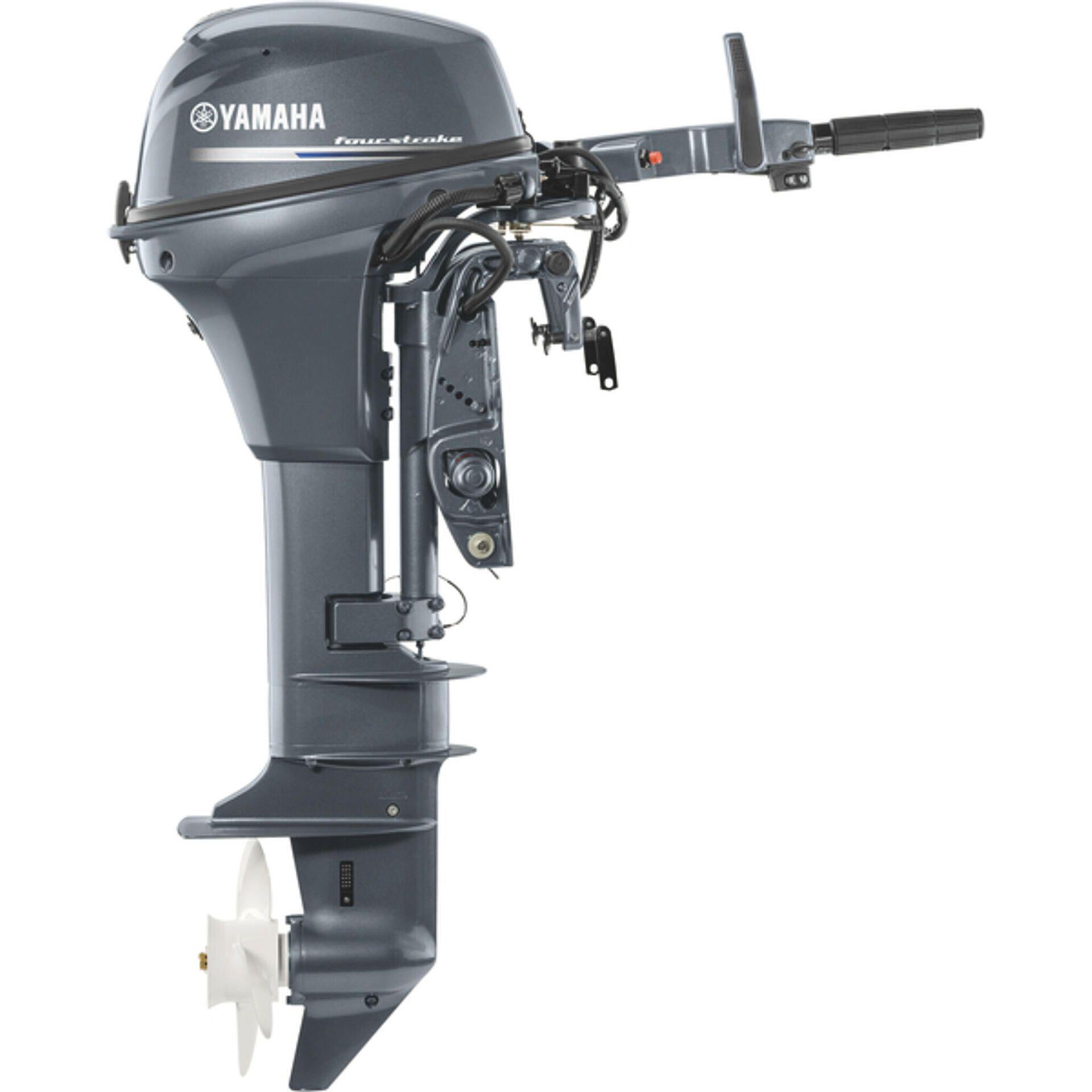

25 Shaft New (2025) Yamaha 9.9 HP Tiller (T9.9) four-stroke Outboard Motor High Thrust (T9.9XWHB) Start Electric Tilt Manual
Original price was: $1,799.00.$1,499.00Current price is: $1,499.00.
High Thrust Performance Features
- High Gear Ratio (2.92:1): Equipped with a larger gear case and lower gearing to turn a massive propeller, providing the “pushing power” needed for heavy loads.
- Dual Thrust™ Propeller: A unique design that redirects exhaust gases away from the blades when in reverse, ensuring maximum grip and stopping power in the water.
- 212cc 2-Cylinder SOHC Engine: A twin-cylinder architecture that delivers significantly smoother operation and higher low-end torque than single-cylinder models.
Core Engine Specifications
- Engine Type: SOHC In-line 2-Cylinder
- Displacement: 212 cc (12.9 cu. in.)
- Bore x Stroke: 56.0 x 43.0 mm (2.20 x 1.69 in)
- Prop Shaft Horsepower: 9.9 HP at 5500 RPM
- Full Throttle RPM Range: 5000 – 6000 RPM
- Compression Ratio: 9.4:1
- Fuel Induction System: Single Carburetor
- Ignition System: CDI Microcomputer
- Lubrication System: Wet Sump
- Oil Capacity: 0.8L (approx. 0.85 qt)
Dimensions & Mechanical Data
- Shaft Length: 25″ (Extra Long Shaft)
- Dry Weight: Approximately 49 kg (108 lbs)
- Starting System: Electric Start with Manual Rope Start backup
- Steering: Tiller Handle
- Trim & Tilt: Manual Tilt (5 positions)
- Tilt Range: 71°
- Trim Range: -4° through +16°
- Gear Ratio: 2.92:1 (Higher than standard 9.9HP for massive low-end torque)
- Gear Shift: Forward, Neutral, Reverse (F-N-R)
- Alternator Output: 12V, 6 Amp
High Thrust (T-Series) Specific Features
- Dual Thrust™ Propeller: Standard 11-3/4″ x 9-1/4″ propeller that directs exhaust away from the blades in reverse for maximum grip and braking power.
- Heavy Duty Gearcase: Larger casing to support the high-torque gear set and oversized propeller.
- Freshwater Flush Device: Allows for easy cleaning of the internal water passages without running the motor.
- Labyrinth Exhaust: Reduces engine noise at low speeds, making it ideal for quiet trolling or sailboat auxiliary use.
- YDC-30 Aluminum Alloy: Yamaha’s specialized alloy for superior corrosion protection.
Fuel & Maintenance
- Recommended Fuel: Regular Unleaded (Minimum 87 Octane)
- Recommended Oil: Yamalube® 4M (10W-30)
- Spark Plug: NGK® BR6HS-10
- Warranty: 3-year limited warranty
-
⚡ Starting & Power Features
- Electric Start: Effortless push-button starting with a permanent manual pull-start handle included as a backup.
- 6-Amp Alternator: A built-in charging system that provides power to maintain your starting battery and run cabin lights or navigation electronics.
- PrimeStart™: An automatic enrichment system (auto-choke) that ensures the engine starts reliably on the first attempt in any temperature.
- Auto-Decompression: Reduces cylinder pressure during the start cycle, making it easier on both the electric starter motor and the manual rope.
🕹️ Control & Maneuverability- Multi-Function Tiller Handle: Features an ergonomic design with a front-mounted shift lever (F-N-R) for easy accessibility while seated.
- Manual Tilt & Shallow Water Drive: A simple, lever-actuated tilt mechanism. It includes multiple preset positions to allow safe operation in thin water to protect the lower unit.
- Long-Reach Steering: The tiller handle is designed to be easily operated even when the motor is mounted deep in a sailboat’s motor well.
🛡️ Durability & Protection- Freshwater Flush Device: A front-mounted port that allows you to rinse salt and sand out of the cooling system with a garden hose without running the motor.
- YDC-30 Aluminum Alloy: Yamaha’s proprietary anti-corrosive alloy, finished with a 5-stage paint process for superior saltwater longevity.
- Thermostatic Cooling: A water-cooled system with a thermostat that ensures the engine maintains the ideal operating temperature for performance and longevity.
📦 Standard Equipment- Shaft Length: 25 inches (Extra-Long).
- Weight: Approximately 49 kg (108 lbs).
- External Fuel Tank: Typically supplied with a 12L (3.1-gallon) tank and fuel line.
- Propeller: Specialized 3-blade High-Thrust aluminum propeller
